Aircraft Manufacturer: Alpi Aviation

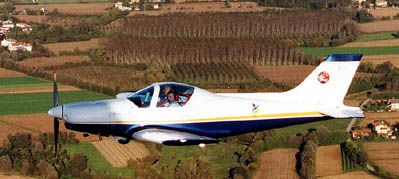

Pioneer 300

Clever and Smart PDF


Canada

ADVANCED ULTRA LIGHT AERO PLANE:
Propeller-driven aero plane designed to carry a max. of  TWO Persons, including the pilot, and having:

1. In the case of a land-plane, a max. take-off weight of  480 kg (1058.2 lbs) for a two-place airplane.


Min speed: 32 kt 37 mph 60 kmh
Cruise speed: 135 kt 155 mph 250 kmh
Vne: 154 kt 177 mph 285 kmh

Max. take off weight: 472 kg | 1041 lbs
Empty weight: 285 kg | 628 lbs

Climb ratio: 1400 ft/min | 7,5 m/s
Glide ratio: 1:14

Take off distance over 50ft (15m) obstacle: 490 ft | 150 m
Landing distance over 50ft (15m) obstacle: 490 ft | 150 m

Engine: Rotax 912S  (Smart M160/1)
Fuel consumtion: 14,7 Liter @ 75%

Other information:
Award Winner 2003 and 2004 in long distance race over 1200km with average speed of 254 km/h. Maximum Weight 450 -560 kg( depends on the certification-rules in different countries) The Pioneer 300 is a perfect combination of wonderful design, great performance, easy handling and immense safety. Available ready-to-fly and also in 2 different Kit-stages (51% and 80% ready)beginning at € 34500,- For more information contact Mr. Michael Reiss via phone:+49 1717854400 email:pioneer300@gmx.net

Price with Engine: 80.000.- CDN

P300 Fast Kit (Rotax or Jabiru) $38,750

Pricing is based on exchange rate between USD/Euro.

Price is subject to change

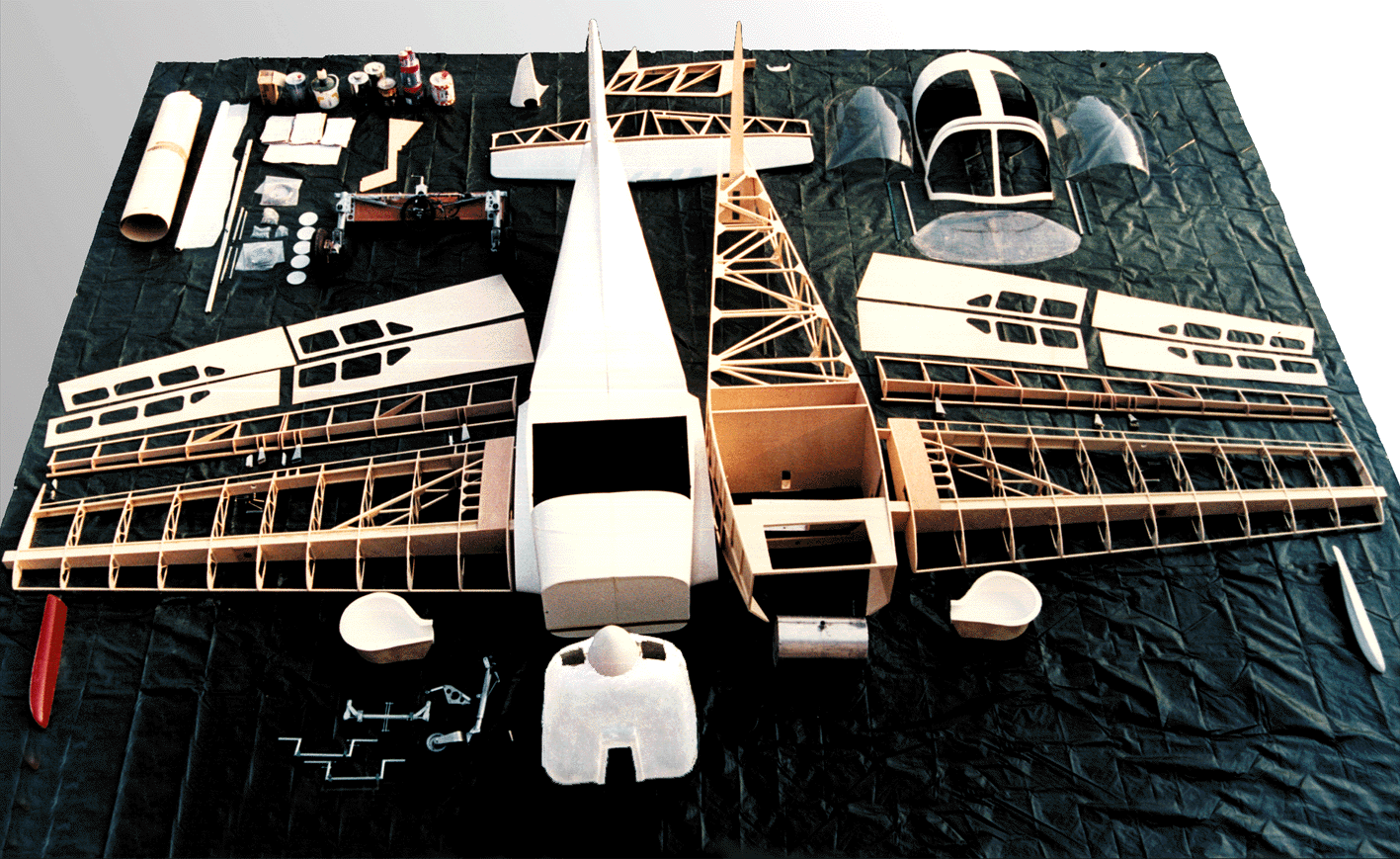

  Kit Include
  • All the building material and parts

  • Engine Smart 10 200 €
  • Instruments
  • Accessories
  • Options

  Kit Excludes
  • Fuselage
  • Empennage
  • Rudder

  Assembled Parts
  • Two separate parts for covering fuselage and fin
  • Tail Terminal
  • Hard-top and Windshield
  • Wing Tips
  • Covering Horizontal Fixed Plane
  • Retractable Gear Wheels Box
  • Engine Bonnet
  • Spinner Kit.

  Composite & Carbon Parts
  Hardware
  • Retractabe group completely assembled and electric motorized
  • "Rotax", "Mid=West", or "Sauer" Engine Mount
  • Wing Tanks
  • Complete Rudder-Bar
  • Cloches
  • Hard-top Rails
  • Motorized Electric Flaps
  • Flaps and Aileron Lever Controls
  • Metal Hinge
  • Steel Cables
  • Covers for Access Panels

  Other
  • Lexan for Canopy and Windshield Performance
  • Adhesives and Wood Protectives
  • Resin and Kevlar Connections
  • Covering Dacron and Collant for Wings, Flaps, Ailerons,
  • Rudder and Empennage
  • Primer and Protective Paint

  Notes

  • Hardware Powders Painted
  • Parts in Avional C.N.C. Machined and Oxide Protection Treatment
  • Tires 6 Ply
  • Light Alloy Wheels and Brake Discs
